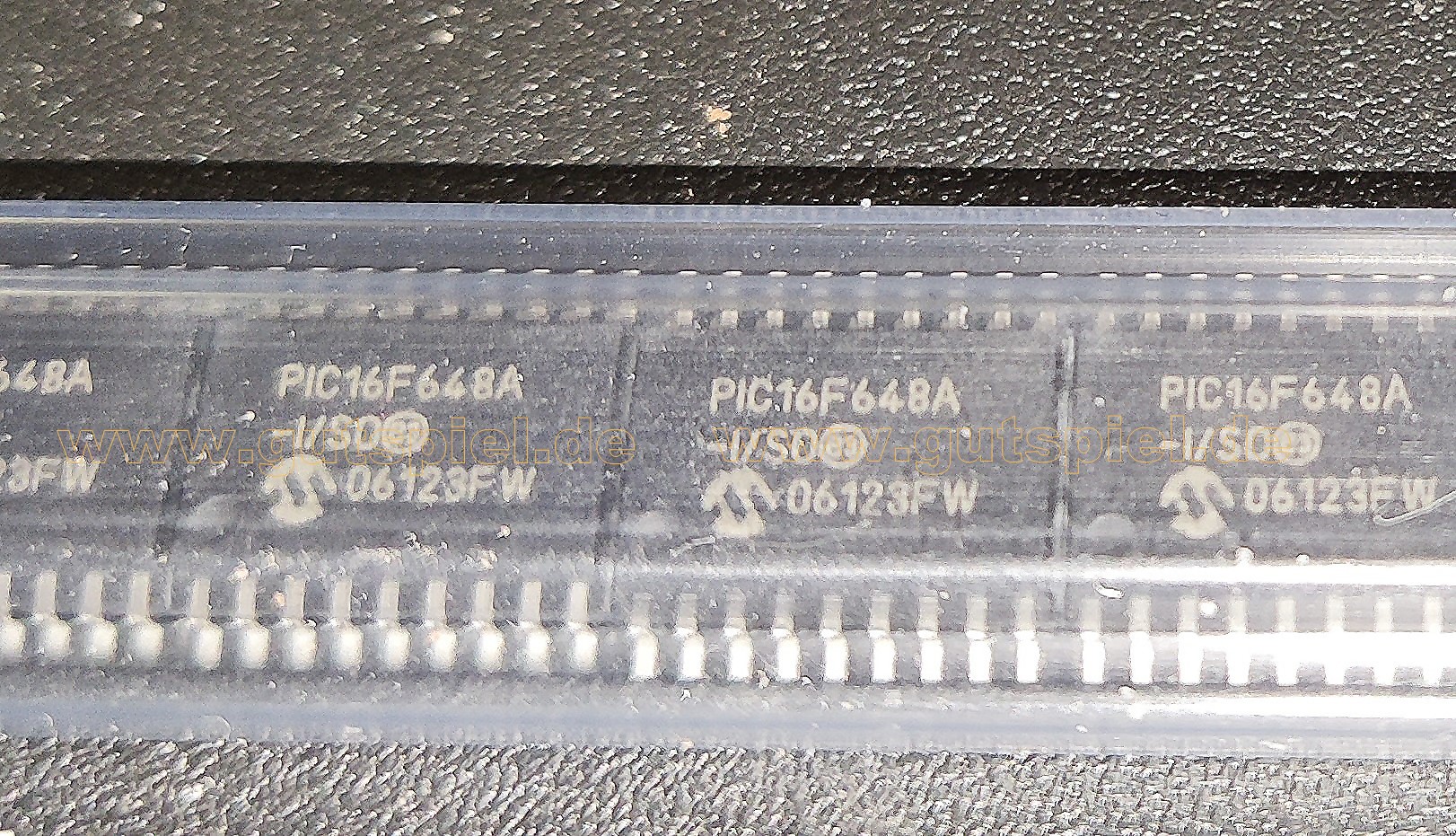

Microchip PIC16F648A-I/SO Mikrocontroller
1,80 €   Stück
inkl. 19% MwSt, zzgl. Versand
Art-Nr. PIC16F648A-I/SO
Lieferzeit sofort sofort
Menge Stück

Microchip PIC16F648A-I/SO

Program Memory Type : Flash

Program Memory Size (KB) : 7

CPU Speed (MIPS/DMIPS) : 5

SRAM (B) : 256

Data EEPROM/HEF (bytes) : 256

Capture/Compare/PWM Peripherals : 1 Input Capture, 1 CCP

Timers : 2 x 8-bit, 1 x 16-bit

Number of Comparators : 2

Temperature Range (°C) : -40 to 125

Operating Voltage Range (V) : 2 to 5.5

Pin Count : 18

This powerful (200 nanosecond instruction execution)
yet easy-to-program (only 35 single word instructions)
CMOS FLASH-based 8-bit microcontroller packs Microchip's
powerful PIC® architecture into an 18-pin package and is
upwards compatible with the PIC16F628, PIC16C62XA, PIC16C5X
and PIC12CXXX devices.
The PIC16F648A features 4MHz internal oscillator,
256 bytes of EEPROM data memory, a capture/compare/PWM,
a USART, 2 Comparators and a programmable voltage reference
that make it ideal for analog/integrated level applications in
automotive, industrial, appliances and consumer applications.

Additional Features
1 PWM 10-bit
Low voltage programming
Low speed Clock mode
Programmable BOR
4MHz internal oscillator
On-chip voltage reference
256 bytes of EEPROM Data Memory

RoHS - konform

Weitere Daten entnehmen Sie bitte dem Datenblatt:
